Diaphragm Pump, 230V, 12.5 L/min, 2.4 bar
Beskrivelse

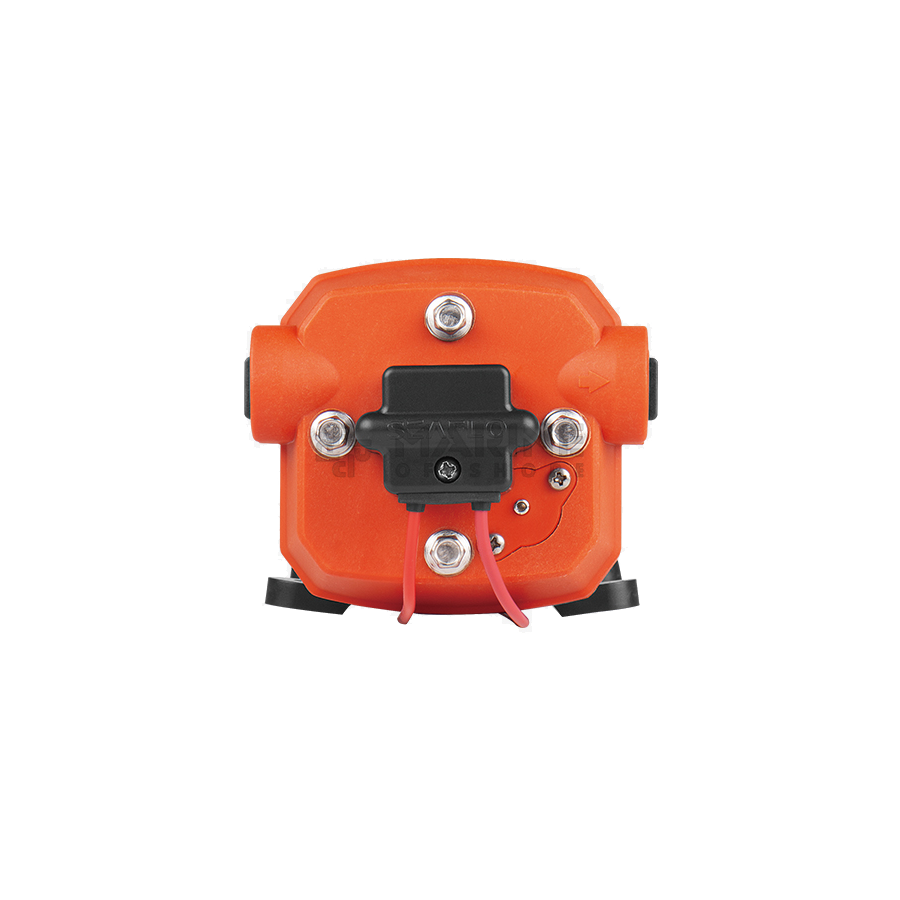

The 41-Series pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, recreational vehicles or remote cabin.
It provides up to 10 liters per minute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They're easy to instal and maintain.
The pump is provided with a plug connection.
The pump is supplied with three fittings and a filter. The fittings have a 1/2" external thread or 12.7 mm hose barb (straight or with curvature).
Warning: Do not pump flammable liquids!
The pumps are tested before they leave the factory. This may cause some water to remain in the pump.
- 4 chamber diaphragm pump
- Corrosion resistant valves
- Quiet running
- Smooth operation
- Self-priming
- Runs dry without damage
- Low power draw
- Quick-attach fittings
- Santoprene diaphragm
- Thermal protection
- Two years warranty
Application: Boats, caravans, camper, agricultural spraying, cleaning machines, humidifier, water purification, medical apparatus, solar water systems
It provides up to 10 liters per minute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They're easy to instal and maintain.
The pump is provided with a plug connection.
The pump is supplied with three fittings and a filter. The fittings have a 1/2" external thread or 12.7 mm hose barb (straight or with curvature).
Warning: Do not pump flammable liquids!
The pumps are tested before they leave the factory. This may cause some water to remain in the pump.
- 4 chamber diaphragm pump
- Corrosion resistant valves
- Quiet running
- Smooth operation
- Self-priming
- Runs dry without damage
- Low power draw
- Quick-attach fittings
- Santoprene diaphragm
- Thermal protection
- Two years warranty
Application: Boats, caravans, camper, agricultural spraying, cleaning machines, humidifier, water purification, medical apparatus, solar water systems
Specifikationer
| SKU | 92051415 |
| Producentens produktnummer | SFDPA2-033-035-41 |
| Mål (l x b x h) | 255 x 102 x 98.5 mm |
| Weight (kg) | 2.26 |
| Flow Rate (L/min) | 12.5 |
| Voltage | 230V (AC/DC) |
| Max amperage (A) | 0.5 |
| Connection (type) | 3/4" Quick attach |
| Bar (pressure) | 2.4 |
| Factory warranty | 2 years |
| Hose barb (mm) | 13 |
| Priming Capabilities (m) | 1.8 |
| Duty cycle | Intermittent |
| Head approx. (m) | 22 |
