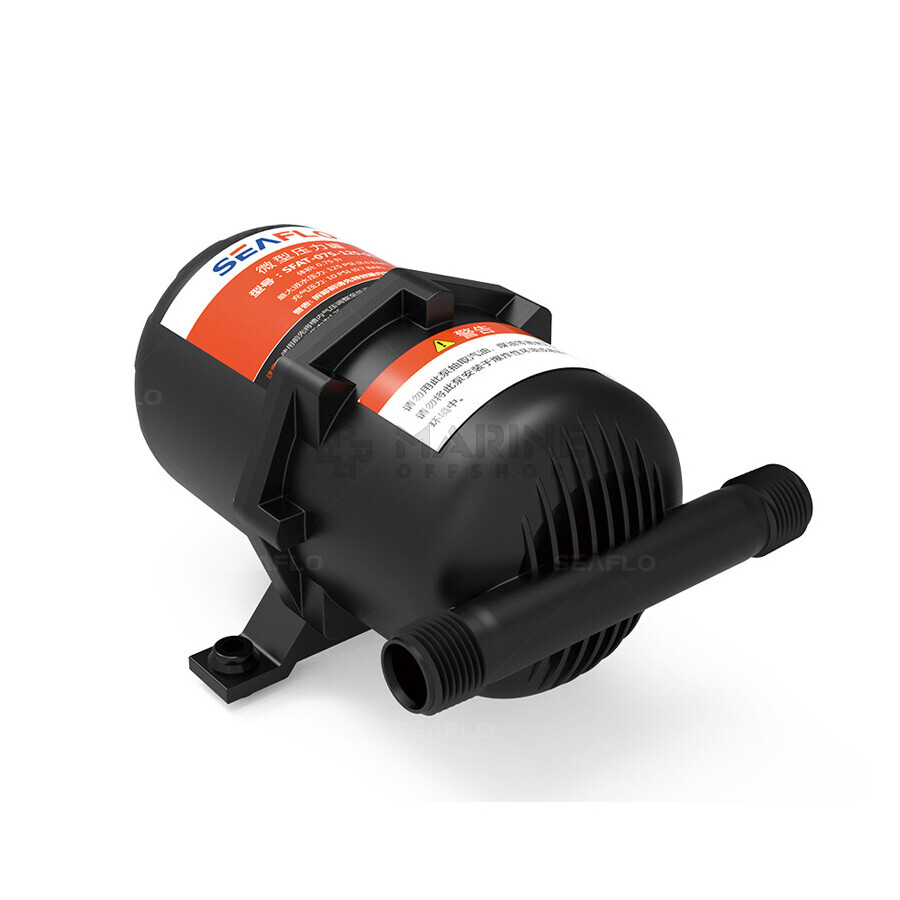

Pressure tank accumulator tank, 1L, Pre-pressure: 0.7 bar adjustable up to 8.6Bar (10-125psi)
Beskrivning
1 liter pressure vessel for drinking water systems.
Pre-pressure: 0.7 bar.
Maximum adjustable pressure: 8.6Bar.
In most systems on board ships, the pre-pressure is set at 1.3 to 1.5 Bar.
There is a valve on the back of the pressure tank so that you can easily set the pressure vessel to the correct pressure.
The threaded connections are equipped with ½MNTP thread, hose tails for hose diameter 13mm internally are supplied as standard.
Length of the pressure vessel including valve: 300mm.
Width: 127mm.
Height: 114mm.
Center to Center distance of the screw holes: 105mm.
Placing a pressure tank in your water pressure system ensures a constant non-sputtering water flow and a smoother running water pump. and extends the life of your pump.
CAUTIONS
- Do not use to pump gasoline, petrol or fluids with flash point below 37°C(98°F), explosion or death may occur.
- Do not over pressurize tank. Pressures over 125PSI(8.6BAR) may rupture tank and cause personal injury.
Pre-pressure: 0.7 bar.
Maximum adjustable pressure: 8.6Bar.
In most systems on board ships, the pre-pressure is set at 1.3 to 1.5 Bar.
There is a valve on the back of the pressure tank so that you can easily set the pressure vessel to the correct pressure.
The threaded connections are equipped with ½MNTP thread, hose tails for hose diameter 13mm internally are supplied as standard.
Length of the pressure vessel including valve: 300mm.
Width: 127mm.
Height: 114mm.
Center to Center distance of the screw holes: 105mm.
Placing a pressure tank in your water pressure system ensures a constant non-sputtering water flow and a smoother running water pump. and extends the life of your pump.
CAUTIONS
- Do not use to pump gasoline, petrol or fluids with flash point below 37°C(98°F), explosion or death may occur.
- Do not over pressurize tank. Pressures over 125PSI(8.6BAR) may rupture tank and cause personal injury.
Specifikationer
| SKU | 92043847 |
| Artikelnummer fabricator | SFAT-100-125-01 |
| Mått (l x b x h) | 300 x 127 x 114 mm |
| Weight (kg) | 0.52 |
