Diaphragm Pump, 12V, 4 L/min, 4.8 bar
Beskrivning
The 21-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 3.8 liter per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time.
This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
Warning: Do not pump flammable liquids!
The pumps are tested before they leave the factory. This may cause some water to remain in the pump.
- 2 chamber diaphragm pump
- Corrosion resistant valves
- Quiet running
- Smooth operation
- Self-priming
- Runs dry without damage
- Low power draw
- Santoprene diaphragm
- Ignition protected
- Two years warranty
Application: Boats, caravans, camper, agricultural spraying, cleaning machines, humidifier, water purification, medical apparatus, solar water systems
This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
Warning: Do not pump flammable liquids!
The pumps are tested before they leave the factory. This may cause some water to remain in the pump.
- 2 chamber diaphragm pump
- Corrosion resistant valves
- Quiet running
- Smooth operation
- Self-priming
- Runs dry without damage
- Low power draw
- Santoprene diaphragm
- Ignition protected
- Two years warranty
Application: Boats, caravans, camper, agricultural spraying, cleaning machines, humidifier, water purification, medical apparatus, solar water systems
Specifikationer
| SKU | 92043993 |
| Artikelnummer fabricator | SFDP1-011-070-21 |

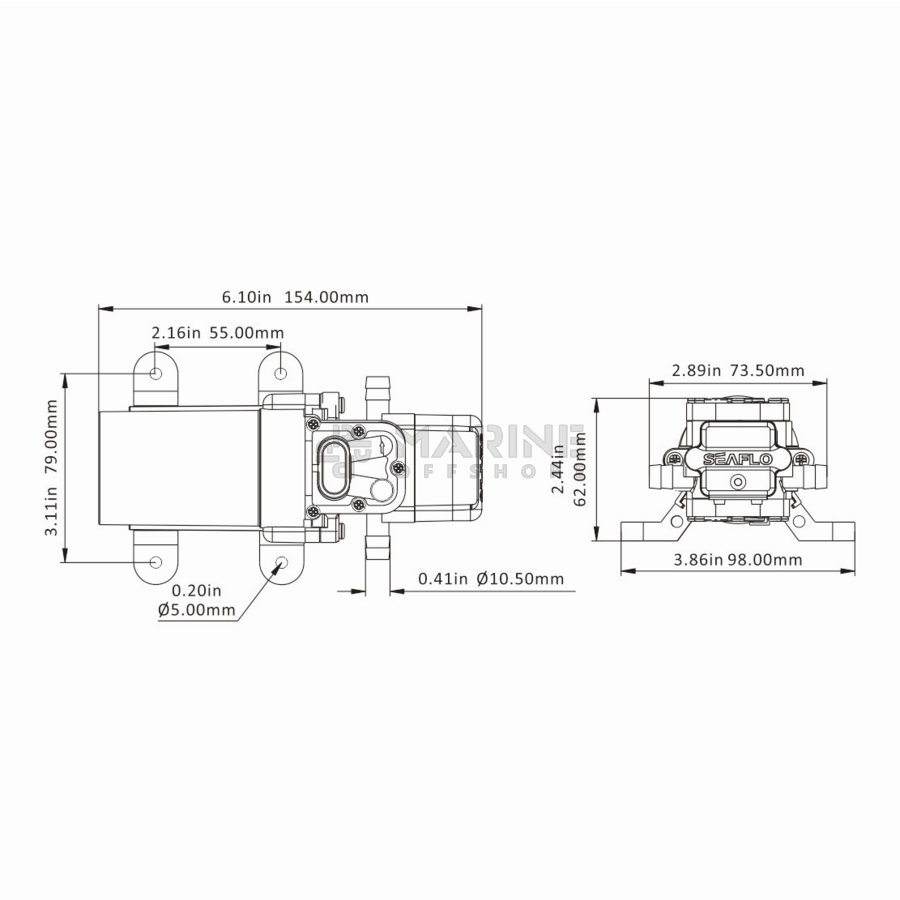

| Mått (l x b x h) | 169 x 100 x 62 mm |
| Weight (kg) | 0.61 |
| Flow Rate (L/min) | 4 |
| Voltage | 12V |
| Max amperage (A) | 4 |
| Bar (pressure) | 4.8 |
| Factory warranty | 2 years |
| Hose barb (mm) | 10 |
| Priming Capabilities (m) | 1.2 |
| Duty cycle | Intermittent |
| Head approx. (m) | 43 |
