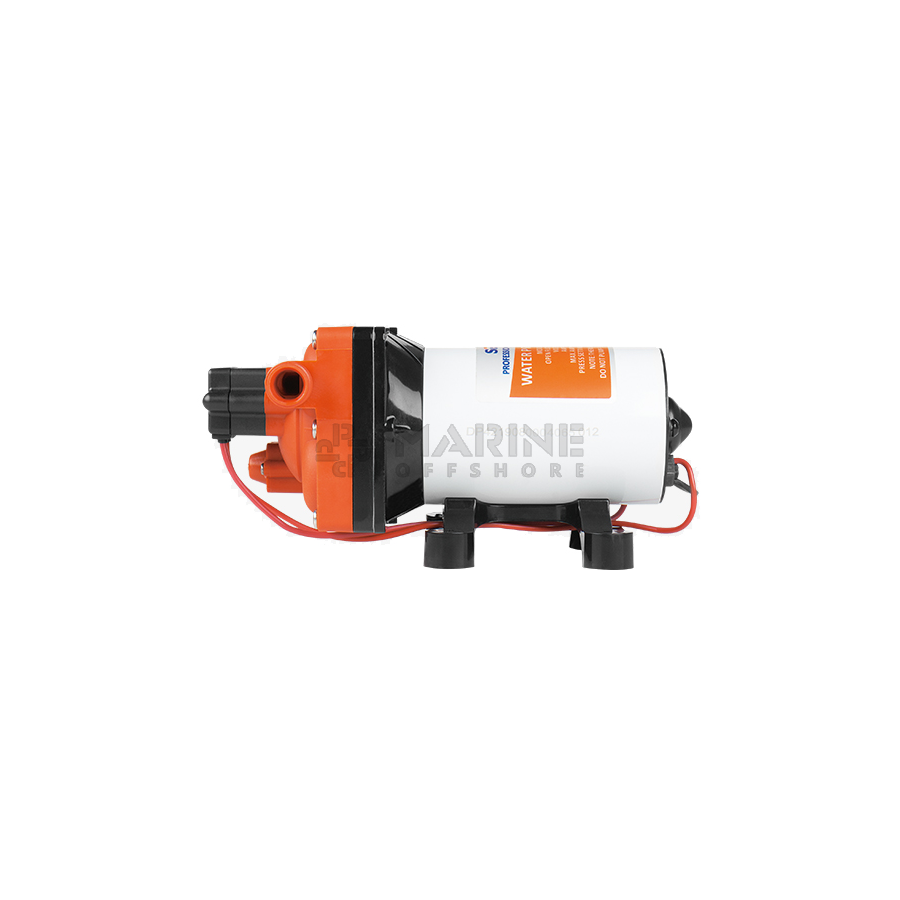

Diaphragm Pump, 12V, 18.9 L/min, 3.8 bar
Beskrivelse
The 42-Series retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can find.
The 42-Serie is self-priming, can run dry without damage and contain 4 chambers.
The pump is supplied with two fittings and a filter with transparant cap. The fittings have a 12.7 mm hose barb. The pump is equipped with a hose connection with 1/2 "external thread.
Warning: Do not pump flammable liquids!
The pumps are tested before they leave the factory. This may cause some water to remain in the pump.
- 4 chamber diaphragm pump
- Corrosion resistant valves
- Quiet running
- Smooth operation
- Self-priming
- Runs dry without damage
- Low power draw
- Easy connecting system
- Santoprene diaphragm
- Ignition protected
- Two years warranty
Application: Boats, caravans, camper, agricultural spraying, cleaning machines, humidifier, water purification, medical apparatus, solar water systems
The 42-Serie is self-priming, can run dry without damage and contain 4 chambers.
The pump is supplied with two fittings and a filter with transparant cap. The fittings have a 12.7 mm hose barb. The pump is equipped with a hose connection with 1/2 "external thread.
Warning: Do not pump flammable liquids!
The pumps are tested before they leave the factory. This may cause some water to remain in the pump.
- 4 chamber diaphragm pump
- Corrosion resistant valves
- Quiet running
- Smooth operation
- Self-priming
- Runs dry without damage
- Low power draw
- Easy connecting system
- Santoprene diaphragm
- Ignition protected
- Two years warranty
Application: Boats, caravans, camper, agricultural spraying, cleaning machines, humidifier, water purification, medical apparatus, solar water systems
Specifikationer
| SKU | 92049916 |
| Producentens varenummer | SFDP1-050-055-42 |
| Dimensioner (l x b x d) | 202.5 x 125 x 111 mm |
| Flow Rate (L/min) | 18.9 |
| Voltage | 12V |
| Max amperage (A) | 15A |
| Hose connection | 1/2" external thread |
| Bar (pressure) | 3.8 |
| Factory warranty | 2 years |
| Hose barb | 12.7 mm |
| Priming Capabilities (m) | 1.8 |
| Duty cycle | Intermittent |
| Head approx. (m) | 34 |
| Weight (kg) | 1.85 |
